Fast Facts:__

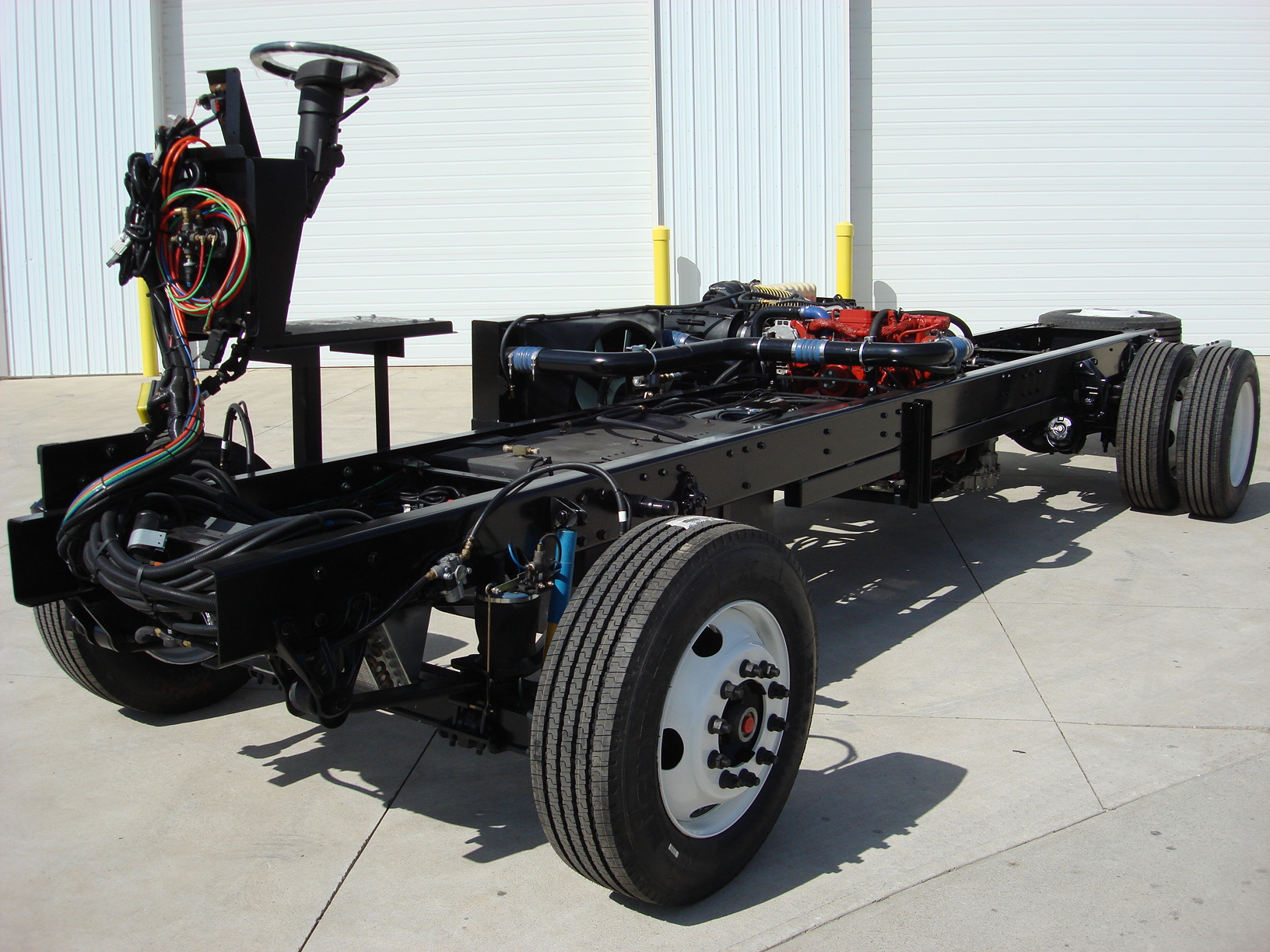

Chassis:__


                32, 35, 37, & 40 feet

                4 Air Bag Suspension with 70mm dump feature

                275/75/22.5 Low Profile XZA Michelin Tyres

                Stainless Steel Wheel Simulators

                Hi Tensile Chassis Rails

                Remote Side Compartment Service Centre

                12 Volt System

                Wide Track Axles

Enlarge
Enlarge
Enlarge
Enlarge
Enlarge
Enlarge

Index,

Body Construction:__


                Sub Structure -                  Galvanised 65mm x 65mm x 3mm Steel SHS

                Side Wall -                         Galvanised 35mm x 35mm x 2mm Steel SHS

                Side Wall Cladding -            Fibreglass 6mm Gelcoated One Piece

                Roof -                                Fibreglass 3mm Gelcoated One Piece

                Compartments -                 Zincanneal 1.6mm Steel Sheet

                Windscreen -                      3M bonded onto Steel

                Cabin Cockpit -                   Galvanised & P/Coated Steel Frame Construction

House Systems & Features:__



                Fresh Water Capacity -           805 ltr

                        Tank 1 -                        385 ltr

                        Tank 2 -                        420 ltr

                Grey Tank -                           227 ltr

                Black Tank -                          135 ltr (secondary)




                Thetford Tecma Ceramic Toilet with inbuilt macerator

                World Class Propane Eco Toilet system (no dumping required)





                4.8KVA Onan Cummins 2 Cylinder Kubota 240v/50Hz Generator




                Oasis Diesel Hydronic Hot Water System

                Oasis Diesel Coach 4 Zone Ducted Radiant Heating System






                Propane (LPG) -                  18 kg (2 x 9kg bottles)

                Solar Roof Panels -              560 watt (4 x 140watt)

                Inverter -                           MasterVolt 2500 watt

                Battery Charger -                MasterVolt 100 amp House - 5 amp Engine


                Refrigerator -                      VitriFrigo DW360BTX 12volt/240volt

                Washing Machine -              Dometic WMD 150 3.0kg

                Roof A/C -                          2 x Air Command - Commorant R/cycle Ducted

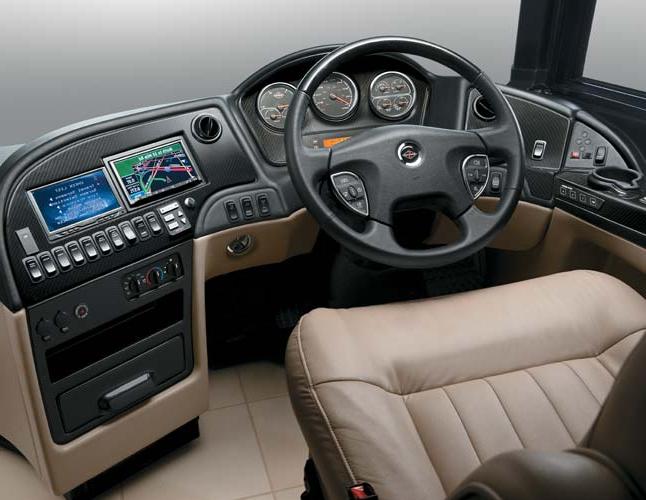

Driver Conveniences:__


                World Class ProAir A/C system

                ZF Variable Power Steering

                Cruise Control

                Anti Lock Braking System(ABS)

                Smart Steering Wheel with Controls for Wipers,Lights,Cruise

                Electric Control Adjustable Brake & Accelerator Pedals

                Electric Push Button Internal Sun Visors

                Panoramic One Piece Windscreen

                Euro Style Windscreen Wipers

                Euro H4 Projection Headlights

                Euro Tail Lights

Rear Axle & Suspension:__


                Capacity - 10,500kg

                Hendrickson 2 position Air Bag Suspension

                Meritor RS-21-360 Rear Axle

                Ratio 4.11

                Full S Cam Air Brakes

Front Axle & Suspension:__


                Capacity - 5,500kg

                Hendrickson 2 position Air Bag Suspension

                Hendrickson Steer Axle (Right Hand)

                Full S Cam Air Brakes



Transmission:__


                Allison 3000 Series

                6 Speed Double Over/drive

                Electronically Controlled

                Drivers Push Button Shift Control

Engine:__


                Cummins ISB 6.7ltr Turbo Diesel (middle mounted)

                254kw(340Hp)

                895Nm(660ftlb)@1600rpm

                Variable Turbo with Internal Exhaust Engine Brake

                ADR & Euro Emission Compliant



Dimensions & Capacities:__



                Wheel Base:

                        32' -                     5.385 mm

                        35' -                     6.300 mm

                        37' -                     6.910 mm

                        40' -                     7.825 mm

                Width -                         2.495 mm

                Rear O/hang -               3.225 mm

                Height - (Dumped)      3.800 (3.700) mm

                GVM -                          15.000 kg

                GCM -                          19.500 kg

                Towing Capacity -           4.500 kg

                Diesel Fuel Capacity -       385 ltr



Enlarge

TOP

Enlarge
Enlarge
Enlarge
Enlarge

Note:This page is currently being updated, Specifications may change without notice.

Enlarge
Enlarge
eXTReMe Tracker

Exterior Graphics:__

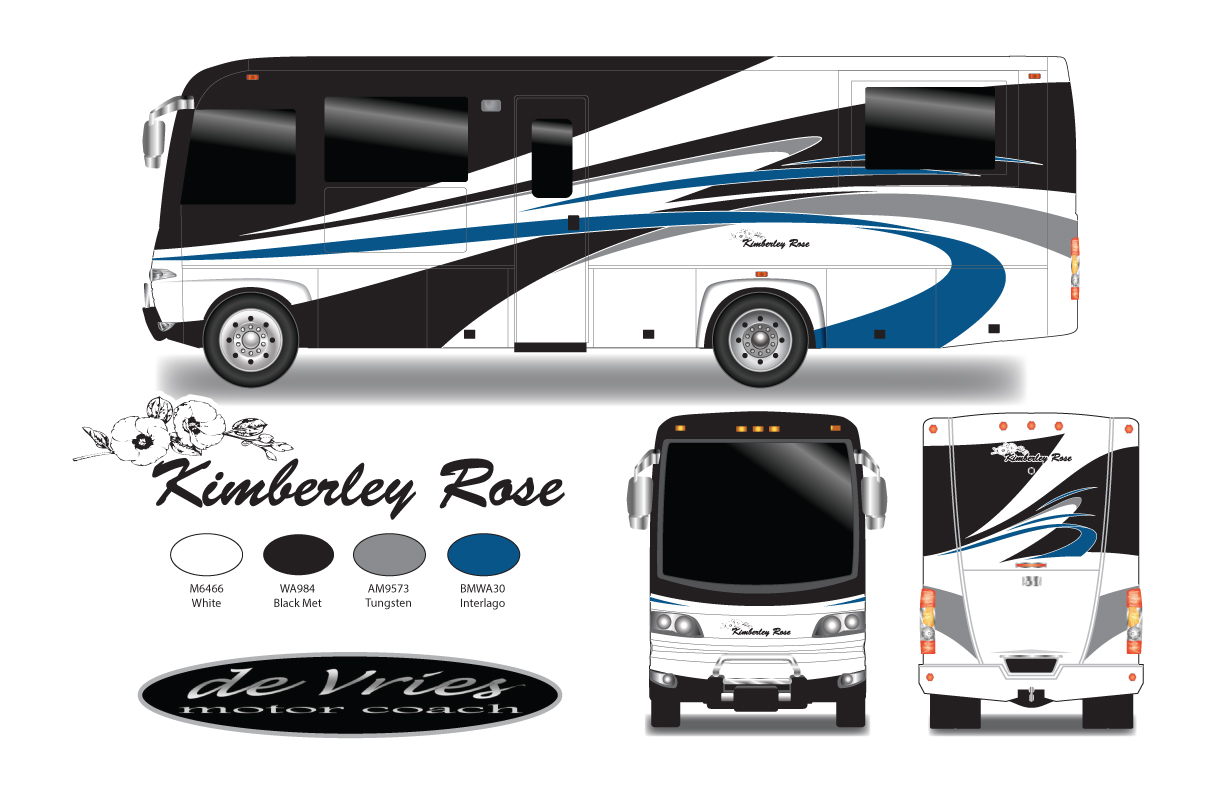

Colour/Graphic Code ~ KR104 (32 Foot Coach Shown)

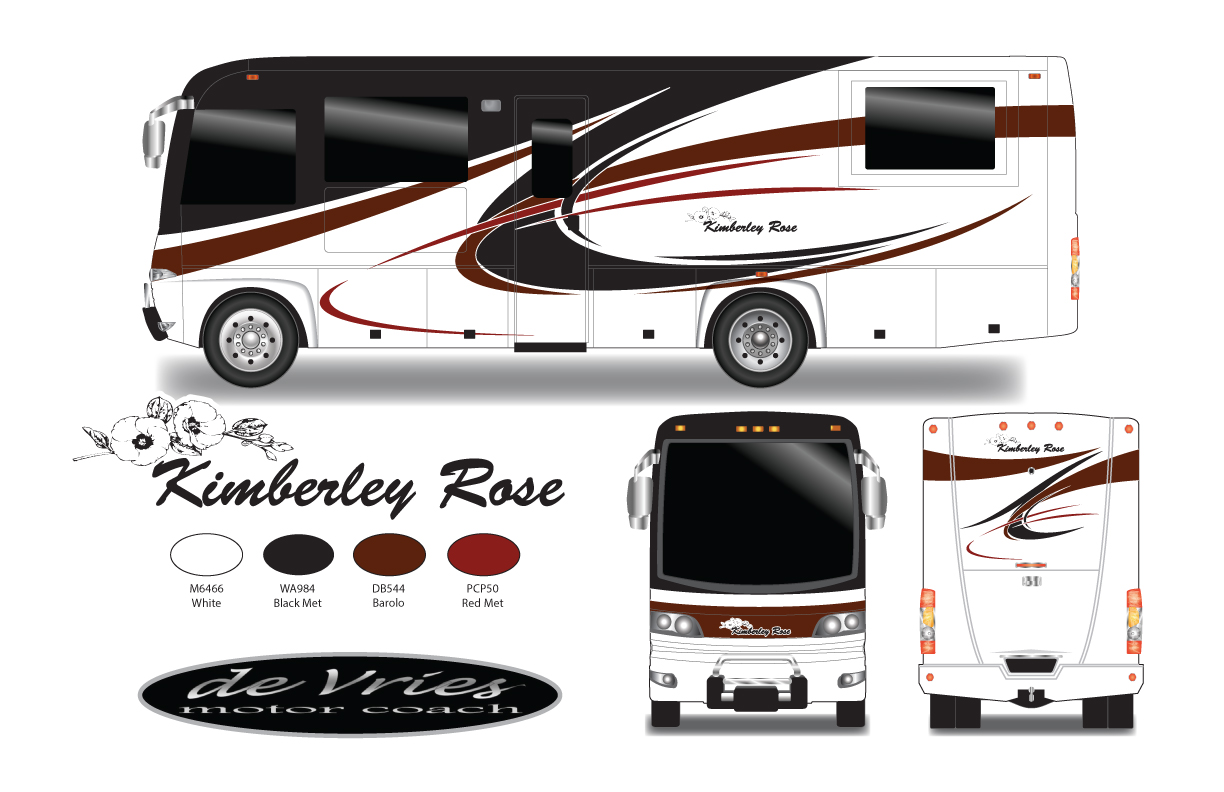

Colour/Graphic Code ~ KR212 (32 Foot Coach Shown)
